The melting process of the material is optimized to increase the extrusion yield. To achieve the material melt at a lower temperature extrusion. Through the isolation gap to determine the role of shear, so that the material reached a good homogenization. The different materials to provide a wide range of processing, applicable to all kinds of polyolefin raw materials, especially for HDPE, PP, ABS pipe material.
1.Product Description
Due to the current fierce competition in the plastic pipe market, so that we extrusion equipment production and performance put forward higher requirements. The screw adopts the optimized composition of the separation screw and the mixing element, and the optimization design of the groove barrel and the extended feeding section is adopted. By the combination of separate screw and groove barrels, the following advantages can be obtained: the melting process of the material is optimized to increase the extrusion yield. To achieve the material melt at a lower temperature extrusion. Through the isolation gap to determine the role of shear, so that the material reached a good homogenization. The melt-plasticizing process is controlled, that is, only particles smaller than the isolation gap can enter the melt channel. The different materials to provide a wide range of processing, applicable to all kinds of polyolefin raw materials, especially for HDPE, PP, ABS pipe material.

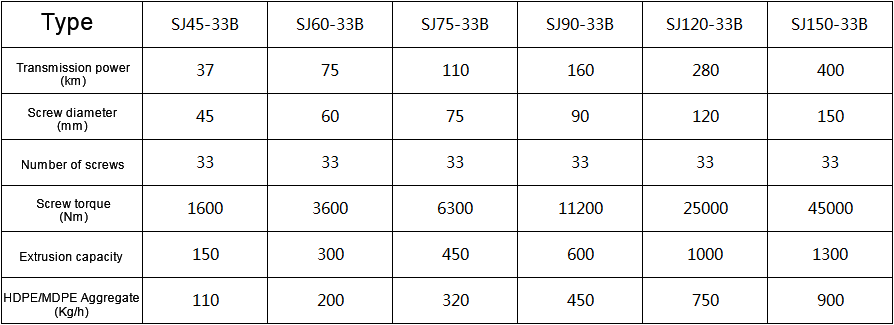

2.Technical Parameters
3.Product range and application
HDPE for drainage pipes, gas pipes
Large diameter HDPE two, three double anti - tube
HDPE / PP / PVC large diameter double wall corrugated pipe and PVC reinforced tube
MPP power pipe (modified polypropylene tube, MPP cable tube, MPP power cable protection tube)
PVC, PP special purpose small single wall, double wall corrugated pipe
HDPE / PP / PVC large diameter double wall corrugated pipe
UPVC solid wall pipe
PVC-C buried high-voltage power cable sheathing
PP-R, PE-RT, PE-X and other hot and cold water pipes
RTP skeleton reinforced composite tube
PP ultra-quiet drain
PVC medical tube
PMMA, PC, ABS, PP and other special tube
